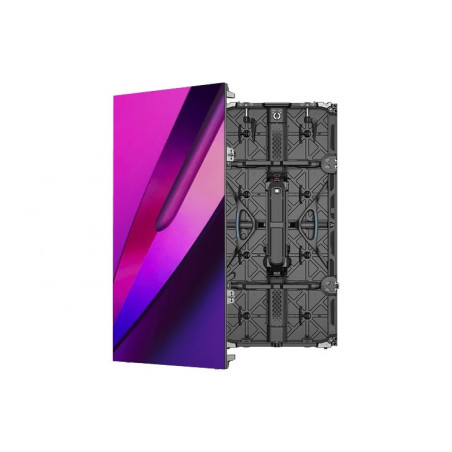

Led Display Screen P-2.6 Outdoor For Rent

Pixel Pitch 2.604mm

Module Size 250mm X 250mm

Color Configuration SMD 3in 1 1R1G1B

Module Resolution 96dots X 96dots

Pixel Density 9216 dots/Pcs

Driver Mode 1/32 Scan

Weight/ pcs 0.45kg

Cabinet Specification Reference Picture

Cabinet Size(WX H) 500*500mm

Cabinet Resolution 168*168dots

Module Quanity 2*4=8pcs 2*2=4pcs

Pixel Density 112896 dots/m2

Average Power Consumption 280W/m2

Max. Power Consumption 700W/m2

Material Die-Casting Aluminum

Cabinet Weight 7KG

Screen Parameters Reference Picture

Display Area /

Cabinet Quanty /

Led lamp SMD1515

Drive IC HX8863

Control system Novastar

Brightness Over 4000cd/㎡, adjustable by software

Color tempeture Normally 9000-11000K, adjustable by

software

Colors 549 Billion

Brightness Control 255 degree by software

Gray Corrected 16,384 M colors corrected

Best View Distance 2.6-200 m

View Angle Horizontal: 160 °, Vertical: 140 °

Power Supply G-energy

Drive Mode 1/32 Scan

Refresh Rate 3840-7680 Hz/s, can be adjusted

Control Mode Synchronous with PC

Operation Temperature -40 ℃~ +65 ℃

Operation Humidity 10% ~ 95%

Certifications CE, CCC, ROHS, ISO9001
